Multi Bender:
Pipe, Tube and Bar Bender





The pro’s secret to profitable metal work!

Perfect for: Shopfitting, Maintenance, Pipe fitting, Training, Fabrication, Wrought Iron, Handrails, Burglar Bars, Farm Gates, Bakkie rails…


Click below for:

CUSTOMER FEEDBACK

6 QUESTIONS YOU SHOULD ASK
BEFORE BUYING A BENDER

ACTUAL PROJECTS WHERE THE BENDER WAS USED

ACCESSORIES

ROI CASE STUDIES

PHOTOS OF ACTUAL BENDS

Multi Bend System 50R in action.
Multi Bend System
  • ACCURATE
  • SMOOTH
  • REPEATABLE
  • WRINKLE FREE BENDS

IN STEEL, STAINLESS STEEL, & ALUMINIUM.



FEATURES & BENEFITS
A large variety of Standard Dies are available.
Custom Dies for special materials or specific bend diameters can be made on request.

The MB50 Bends even thin wall tube (1.6mm) with no wrinkles.

Easy to learn and operate- even unskilled workers master the machine with minimal training.

No Electricity or Heat required.

Robust all steel construction

Rapid bends

All bending work is done cold, there is no need to heat the metal.

The machine is hand powered by clever use of leverage, thus no electricity is required for operation, making it ideal to use for onsite bending work.

You won’t find any plastic or cast iron parts on the bender.

Every part is machined from solid steel. It is virtually unbreakable.

The bender is designed so that it is easy and fast to set up the material and bend.

Typical bending times in solid bar & up to 32 mm tube bends can be made in less than a minute. 38 to 50 mm tube bends in 3 minutes or less.

5 Year Warrantee

CAPACITY

The Multi Bender comes with a 5-year warrantee against faulty manufacturing and materials.

This is the longest warrantee period in the industry. We are confident in our design and the material used- your Multi Bender will last for years.

Round Tube 12- 50 mm
Square Tube 12 to 38 mm
Rectangular Tube 25x12 to 50 x25mm
Solid Square Bar 16 mm
Solid Round Bar 20 mm
Flat Bar from 3mm to 50x10mm
LOOK HERE FOR CLOSE UP BEND PHOTOS



INCLUDED AS STANDARD WITH ALL MB50 BENDERS

A  ROBUST FLOOR STAND
The stand features holders for Bending Pins and Solid Bar Dies-keeping it right where you need it.

CONVENIENT STORAGE FOR THE BENDING HANDLE WHEN NOT IN USE
Storing it vertically saves space and keeps it out from under your feet.

A SET OF BENDING DIES FOR SOLID BAR
Dies with bend diameters of 35, 40, 50 and 65mm – other diameters available on request.
It will bend flat square and round bar to the maximum, specs of the Bender.

A FLAT BAR BENDING BLADE
This blade makes a sharp bend in flatbar up to 5 mm thick.

PRECISION DEGREE RING WITH ADJUSTABLE STOPPER
Bending needs to be accurate.
The MB50R can bend from 1 to 180 degrees.
The precision degree ring and robust stopper makes it easy to bend to exact angles, and keep repeating it with accuracy.

You simply position the stopper at the angle of bend you require, then bend until the angle of bend indicator touch the stopper.
This gives you a positive indication that the required angle has been reached.


OPTION FOR MULTIPLE ANGLE STOPPERS
For a production environment, multiple angle stoppers can be fitted to the degree ring- this makes it easy to quickly convert to another angle without setting up the machine again.

The unique design of the stopper allows it to be removed from its base, so that the angle of bend indicator can swing past unhindered to reach another stopper at a different angle.

Example
A workpiece in 50 mm Tube require both 90° & 45° bends.
One stopper is then set up at the 90° position the other at the 45° position.

If the 90° bend is 1st to be made simply remove the 45° stopper pin from its base, so that the bend indicator can swing to the 90° mark unhindered.

When it’s time to make the 45° bend no need to remove and remeasure to get the right angle, simply screw the stopper pin into the other stopper base preinstalled at the 45° position.

This unique feature of the Strongman Tube Bender will save you a lot of time.
It makes it easy to have unskilled staff operate the bender for production runs.

ACCESSORIES AVAILABLE FOR YOUR BENDER

INDESTRUCTABLE TUBE DIE SETS- with a lifetime warrantee.

Die sets are machined from solid steel billets.
Which makes them virtually indestructible- we are confident about that -that’s why they carry a lifetime guarantee.

If you manage to wear it out - we replace it for free.
Standard dies sets are available for all tube sizes between 12 and 50 mm.
Custom sets for specific materials and to your required radius can be made.

BEND TABLE

Like an extra pair of hands- the bend table ensures that the material is supported in a level plane with the bend.

Ideally suited for material to 32mm tube and 2 m long.
For longer lengths, the Bender Trolley is recommended.

The Bend Table features a height adjustable Support Roller.

This allows material of different sizes to be supported on the same plane as the bending die- this is important as you want all bends to be on the same horizontal plane.

Another handy feature of the Bend Table is the Material Stopper.

When making repeat bends the stopper is set in such a position so that all bends are made at the same position , a specific distance from the position of the stopper.

CLEVER BENDING TROLLEY

The trolley supports the material that you are bending in the same plane as the bending die.

When bending long heavy sections the bending trolley is indispensable.

It has a firm grip jaw that is height adjustable for different materials.

When bending 38 to 50 mm tube the tube is pulled closer to the bender as the bend is formed.

The trolley is equipped with castors, making it glide over the floor following the path of the tube as it is bent.

It supports the tube as it moves to or from the bender.

The trolley is weighed down with ballast weights (included) to give it more stability.

When bending sections longer than 4 metres we suggest the use of 2 trolleys – one on each side of the bender to ensure the material stays level with the plane of bend.

DIGITAL ANGLE FINDER

An indispensable tool if you are making 3D bends. (Bending in more than one plane)

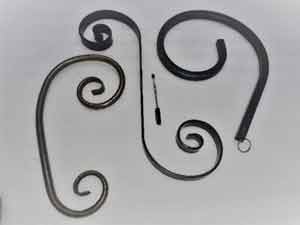

SCROLLING ATTACHMENTS

Fancy scroll work gives a classic look to any project.

A full range of scrolling attachments are available.

These fit right on the bender, allowing you to scroll from 3mm flat bar right up to 20 mm square or round tube.

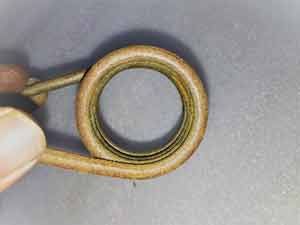

COILER ATTACHMENT

The Coiler attachment makes small diameter (25 - 100mm) circles in up to 10 mm bar.

Works with the standard solid bar dies included with the bender- or alternatively custom diameter dies can be supplied to suit your application.

6 QUESTIONS YOU SHOULD ASK
BEFORE BUYING A BENDER.

1. How robust is the machine?

Was it designed for only occasional use, or can it withstand daily use in a production environment? Strongman Multi Benders have a proven 12 year record of working in production environments.

2. Can it bend thin wall tube- 1.6 to 3mm?

Some types of benders were designed to bend only wall thicknesses of 3 mm and more and will collapse thinner tube. Strongman’s Multi Bender gives a smooth wrinkle free bend even in 1.6 mm tube.

3. Can the bending angle be measured and preset?

The bender must have a device to enable you to measure the angle of bend you are making.

4. Can the bender repeat a bend to a specific angle with accuracy?

The bender’s ability to accurate repeat bends to a specific angle is of paramount importance. Our Precision Degree Ring with adjustable stoppers gives you the ability to preset and repeatedly bend angles to a 1° precision.

5. Are spares available?

Sometimes things go missing or wear out- a machine is an investment and you would like to know that you can replace any part of your machine.

We guarantee that parts for any Strongman machine, no matter how long ago it was purchased, is always available. Even if it is a part for a machine we no longer produce, we will manufacture the part especially for you.

6. Is technical support available?

Does the vendor you buy from understand metalwork and bending or are they just resellers of an imported product?

Strongman have been bending steel and manufacturing benders for 12 years- we understand metal work, and are eager and able to assist you.

CLOSEUP PHOTOS SHOWING THE
QUALITY OF THE BENDS

16mm Square Bar   25 mm Stainless Steel Square Tube
20 mm Rebar bent to a radius of 65mm   38 mm Square Tube

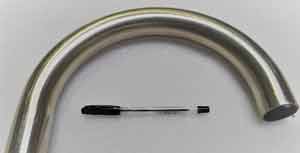

16mm Square Tube   38 mm Stainless Steel Round Tube

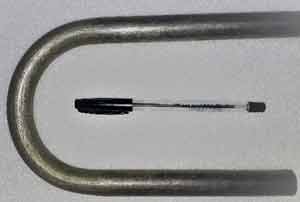

20mm Round Tube   50 mm Round Tube
25 mm Square Tube

50mm Stainless Steel Round Tube

Strongman Metal Tools Price List 2016

Act Now!

Download our Brochure and Price List

Email Us The size of material you want to bend and roll as well as your City - we will send you a quote including delivery - info@strongman.co.za


We are a registered SADEC Exporter, and ship to countries throughout Africa.

Take the action now that means more money in your pocket.

MAKE A CHANGE FOR THE BETTER

Projects in which the Multi Bend System was used.

12 11 9

Piping installation on Hydraulic Power Pack bent with the Pipe Bender.

Equipment brackets and ramps on bike trailer.

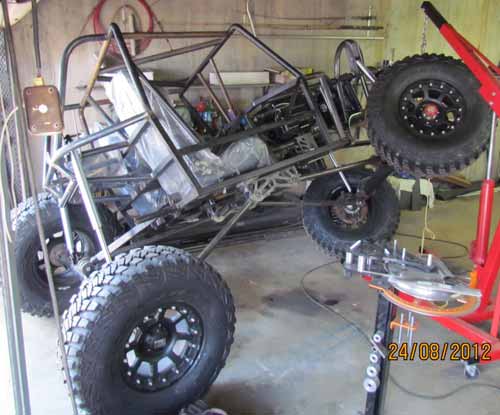

Crawler-met-Bender
Rock CrawlerRock Crawler Side

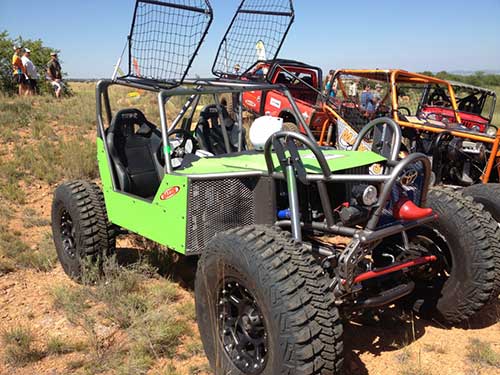

Rockcrawler made by Strongman Metal Tools

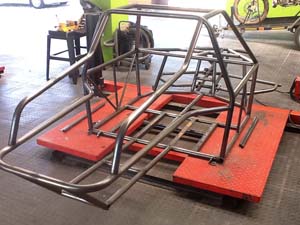

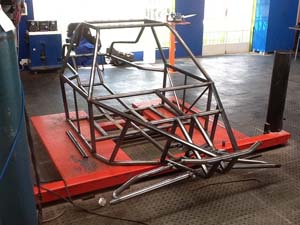

Pipe Car made with Strongman Metal Tools BenderPipe Car made with Strongman Metal Tools BenderPipe Car made with Strongman Metal Tools Bender
Hein Du toit from Klerksdorp building a Pipe Car from 38 mm round tubing using Strongman's Pipe Bender.
Strongman

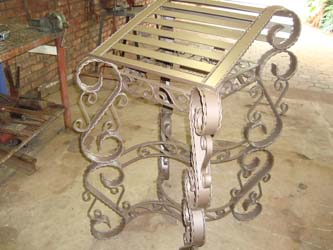

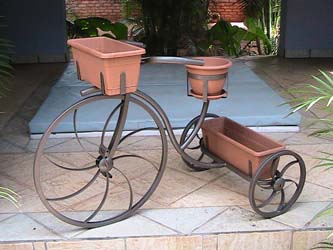

These items were made by Frikkie Willemse from Musina using a combination of Strongman Metal Tools.
Strongman Bender Product

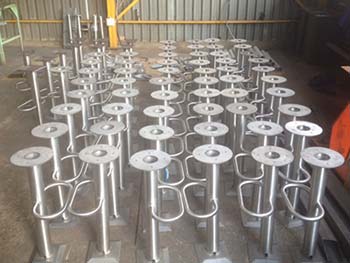

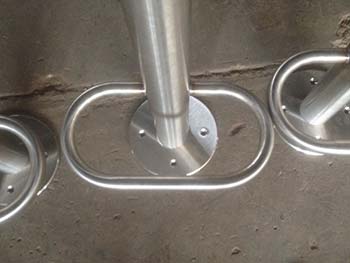

Perfect Repeatable Bends in 25 mm Stainless steel tube using the Tube Bender.
Strongman Bender Repeatable Bends 25mm Stainless steel tubeStrongman Bender Repeatable Bends 25mm Stainless steel tube
"Having good results with the pipe bender and roller. Attached are pics of a bakkie cage I recently completed."
Adrian from Zambia.
'n Ligte bagasie sleepwaentjie vir 'n Suzuki Jimny. Dit is baie lig en baie stewig.
Gebou met 38 x 1.6mm pyp en allum. 'vastrap' plaat. - Dawid Compion
Strongman Metal Tools Bender Toepassing


Ek het my bender gemonteer en moet sê ek is baie tevrede met die resultate. Die pyp is nie vervorm op buig nie en dit lyk beter en is ook beter in my
toepassing aangesien dit reëling​s​ is om werkers te beskerm.

Die besparing is groot in tyd en geld aangesien ek onmiddelik self die pyp kan buig en ek ook dun wand pyp kan buig​.​ ​N​ie soos met die hidroliese masjien wat slegs dik wand pyp kan buig nie. Groot besparing op koste van pyp en gewig van rak​k​e.

Nogmaals dankie, Koos

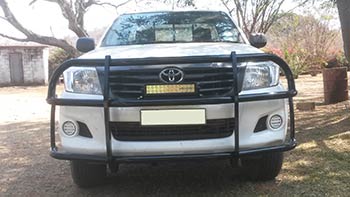

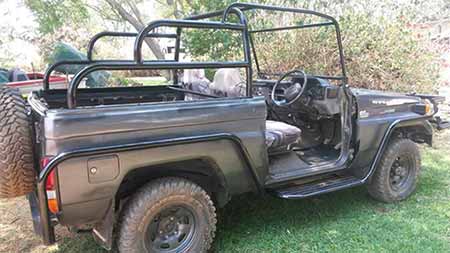

Attached are a couple of pics of a bull bar made with your ​bender.
Cheers ​Adrian - Zambia​, machine used: Strongman's Multi Bend System 50R
Another project by Adrian Bignell

With a Multi Bend System you will complete projects faster.
Your customers will be impressed by the professional appearance of your products- no more sharp corners- just smooth radiused bends.
Elliminate a lot of the cutting, cutting, welding and grinding work associated with a project.

What can you make with your Multi Bend System?

Farm Gates, Furniture, Industrial handrails, ladders and fittings, Trailers, Jungle Gyms, Burglar Proofing, Security Gates, Garden & Driveway gates. U bolts, Eye Bolts, Decorative work.

RETURN ON INVESTMENT CASE STUDIES

1

In the picture is a bunch of 292, (25 by 25mm) square tubes. Each with 2 bends.

This bundle of tubes was bent on the Strongman Multi Bend System by an unskilled labourer with 15 minutes of instruction on the setup and use of the bender.

To outsource bending of this batch of tubes would cost more than the investment required for your own Multi Bend System. (which can bend a whole lot more than 25mm square tube.)

On top of saving yourself money, you can start earning money by bending for others.
Strongman Tools pay for themselves over, and over, and overbecause they are built to last!

2

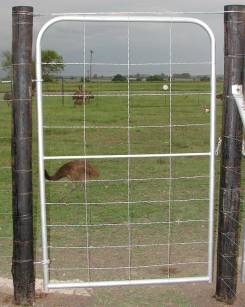

Farm Gate made by Martin of Potchefstroom, in 38 mm tube.

Retail price for the gate at the local Co-Op R800.
Martin made it himself for R200 a piece.
Saving him R3600 on the 6 gates he made!

Strongman Tools pay for themselves within your 1st few projects.



Here is what our customers have to say about their
Strongman Multi Bend Systems

I have been using the Multi Bend System and the 4 ton Ring Roller  for over 2 years now and can leave my staff to work them as hard as they can due to the industrial quality standard that they are engineered to.The use of just these tools have opened the door for me to create things that I would never have expected to have been able to make without the use of heat and mechanized powered machines in my workshop. C M Gordon Grant ,King's Glen Steel, Molteno.

I have really enjoyed using your bending equipment- must say I've made my money back already using it- Steven, Intricate Steel, Cape Town.

Ek het vir oefening n paar ou ysters gebuig, dit is so ongelooflik maklik.Die "user manual" is puik sowel as die dvd. Ek is absoluut weggeblaas met die gehalte van die gereedskap. Ek en my gereedskap gaan nog n paar groot projekte aanpak. Dale van Bloemfontein.

I have already used it to start building a jungle gym,and the results are fantastic.The bender does more than what we expected. Francois from Secunda.

Ek wil net se dankie vir die blok en die stel penne wat julle gestuur het, ek waardeer dit baie. Dit is lekker om besigheid te doen met mense soos julle, mens voel nooit bang dat jy iewers verneuk gaan word nie. Henk

Ons het nou alles onder die knie. Ons buig omtrent 8 tot 10 hake vir elke een met die gas. Dus vanaf 60 per dag na 480 tot 600 per dag. Baie dankie. Wat ‘n verskil!!! Die volgende sal ’n die wees vir die ander deel van die order. Ons buig lekker en Stefan bou ekstra spiere. Marietjie​ van Vryheid​

Strongman Metal Tools Price List 2016

Act Now!

Download our Brochure and Price List

Email Us The size of material you want to bend and roll as well as your City - we will send you a quote including delivery - info@strongman.co.za


We are a registered SADEC Exporter, and ship to countries throughout Africa.

Take the action now that means more money in your pocket.

MAKE A CHANGE FOR THE BETTER
